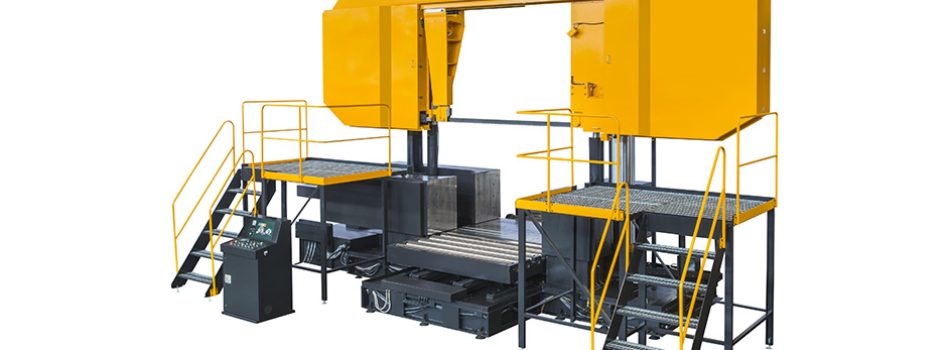

| Model | H-1816 | |
|---|---|---|
| Capacity | 1600 mm (63″) | |
| 1800 x 1600 mm (71″ W x 63″ H) nmin. clamp width 600 mm (23.6″) |
||
| Blade Speed | 12 to 60 m/min. (40 to 200 fpm) (INVERTER) | |
| Motor | Blade Drive | 15 kW (20HP) |
| Hyd. Pump | 5.5 kW (7.5HP) | |
| Coolant Pump | 0.4 kW (1/2HP) | |
| Blade Size | 15900 x 80 x 1.6 mm (626″ x 3″ x 0.063″) | |
| Blade Tension | Hydraulic | |
| Index Length | 1800 mm (70.9″) | |
| Machine Weight | 33000 kg (72600 lb) | |
| Floor Space (L x W) | 7610 x 4700 mm (299.6″ x 185″) | |
