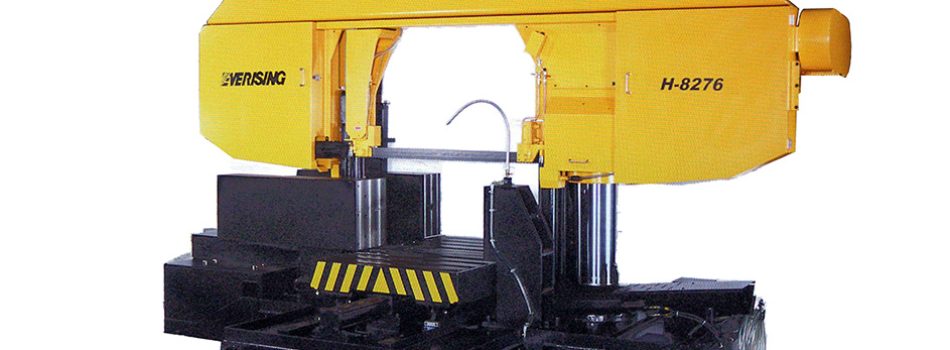

| Model | H-8276V | |
|---|---|---|
| Capacity | 760 mm (30″) | |
| 820 x 760 mm (32.3″ W x 30″ H) nmin. clamp width 285 mm (11.2″) |
||
| Blade Speed | 15 to 75 m/min. (50 to 250 fpm) (INVERTER) | |
| Motor | Blade Drive | 7.5 kW (10HP) |
| Hyd. Pump | 2.2 kW (3HP) | |
| Coolant Pump | 0.2 kW (1/4HP) | |
| Blade Size | 8000 x 54 x 1.6 mm (315″ x 2″ x 0.063″) | |
| Blade Tension | Hydraulic | |
| Index Length | 500 mm (20″) (V) n400 mm (15.7″) (T) |
|
| Machine Weight | 7000 kg (15400 lb) | |
| Floor Space (L x W) | 4100 x 2200 mm (161.4″ x 86.6″) | |
