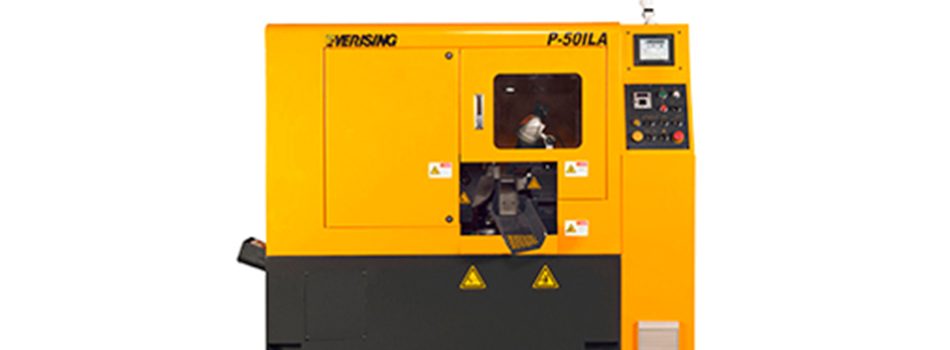

| MODEL | P-50ILA | |
|---|---|---|
| Capacity | 8 – 50 mm | |
| 8 – 40 mm | ||
| Blade Motor | 10 HP | |
| Hydraulic Pump Motor | 2 HP | |
| Blade Speed | 55 – 220 rpm | |
| Saw Blade Size n(T: kerf t: thickness) |
Ø 250 x T2.0 x 1.75t mm | |
| Bar Feed | Servo motor and ball screw | |
| Blade Feed | Servo motor and ball screw | |
| Automatic Feed Length | Single feed 6 – 400 mm nMultiple feed – 3000 mm |
|
| Automatic Chip Conveyor | Hydraulic spiral type | |
| Cooling | Air compressed oil mist | |
| Machine Weight with Table | Approx. 1900 kgs | |
| Machine Dimension | 1900 (W) x1500 (L) mm | |
