GH2525-25
MODEL GH2525-25 CUTTING RANGE SQUARE 2500 mm(W) x 2500 mm(W) CUTTING RANGE ROUND 2500 mm BOW TRAVEL 2500 mm PORTAL STROKE 2500 mm BLADE SIZE 17750 X 80 X 1.6 mm ADJUSTABLE BLADE SPEED 15 – 60 m/min BLADE MOTOR 30 HP HYDRAULIC POWER PACK MOTOR 10 HP HYDRAULIC CHIP BRUSH MOTOR 1/2 HP SCREW […]
HW450/650II
Model HW450/650II Capacity 90° 490 mm 650 x 450 mm (W x H) ±45° 390 mm 390 x 420 mm (W x H) -60° 260 mm 260 x 420 mm (W x H) Blade Speed 20 ~ 100 m/min Blade Size 7200 x 41 x 1.3 mm Motor Blade 3.7 kW (5 HP) Hydraulic Pump […]
HW500/900II
Model HW500/900II Capacity 90° 500 mm 900 x 500 mm (W x H) ±45° 500 mm 580 x 500 mm (W x H) -60° 375 mm 375 x 500 mm (W x H) Min Clamping 150 mm Blade Speed 15 ~ 100 m/min Blade Size 8300 x 54 x 1.6 mm Motor Blade drive 5.5 […]
HW700/1100
Model HW700/1100 Capacity 90° 715 mm 1100 x 700 mm (W x H) ±45° 680 mm v 680 x 700 mm (W x H) -60° 480 mm 480 x 700mm (W x H) Min Clamping 410 mm Blade Speed 15 ~ 100 m/min Blade Size 9600 x 54 x 1.6 mm Motor Blade Drive 7.5 […]
S-4633SA
Model S-4633SA Capacity 0 330 mm (13″) 460 x 305 mm (18.1″ W x 12″ H) mm ±45° 305 mm (12″) mm 305 x 305 mm (12″ W x 12″ H) mm -60° 220 mm (8.7″) 250 x 220 mm (9.8″ W x 8.7″ H) Blade Speed 25, 45, 70, 100 m/min (83, 150, 230, […]
S-6235HA
Model S-6235HA Capacity 0 350 mm (13.8″) 620 x 350 mm (24.4″ W x 13.8″ H) 45° 350 mm (13.8″) 420 x 350 mm (16.5″ W x 13.8″ H) 60° 300 mm (11.8″) 290 x 350 mm (11.4″ W x 13.8″ H) Blade Speed 20 to 100 m/min (65 to 330 fpm) Motor Blade drive […]
S-6240SA
Model S-6240SA Capacity 0 400 mm 620 x 400 mm ±45° 400 mm 420 x 400 mm -60° 300 mm 290 x 400 mm Blade Speed 20, 45, 70, 100 m/min. (65, 150, 230, 330 fpm) Motor Blade drive 3.7 kw (5 HP) Hydraulic Pump 0.75 kw (1 HP) Coolant Pump 0.1 kw (1/8 HP) […]
V-0417
Model V-0417 Cutting capacity (H x D) 400 mm x 1700 mm (15.7″ x 67″) nmin. clamp width 700 mm (27.5″) Blade Speed 15-75 m/min (50 to 250 fpm) Motor Blade drive 7.5 kW (10 HP) Hydraulic pump 2.2 kW (3 HP) Coolant pump 0.6 kW (3/4 HP) Chip conveyor 0.4 kW (1/2 HP) Blade […]

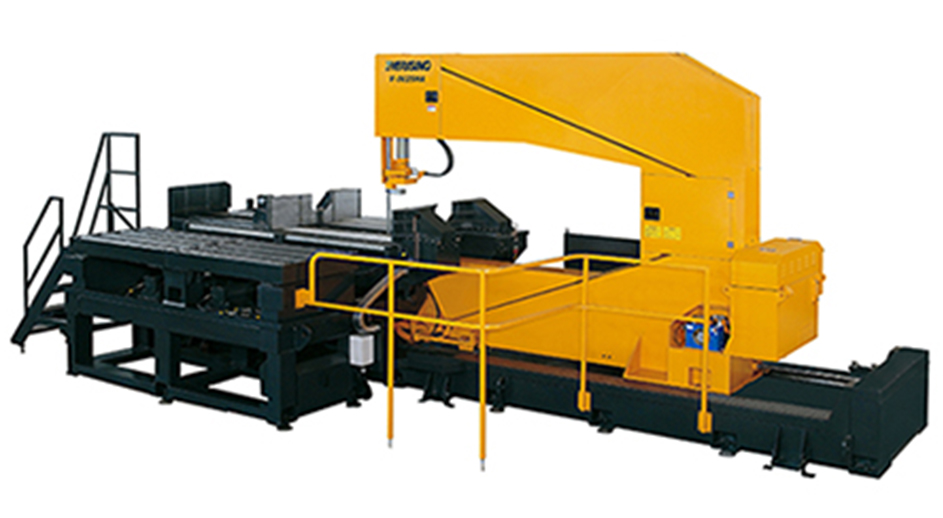

V-0422
Model V-0422 Cutting capacity (H x D) 400 mm x 2200 mm (15.7″ x 86.6″) nmin. clamp width 1200 mm (47.2″) Blade Speed 15-75 m/min (50 to 250 fpm) Motor Blade drive 7.5 kW (10 HP) Hydraulic pump 2.2 kW (3 HP) Coolant pump 0.6 kW (3/4 HP) Chip conveyor 0.4 kW (1/2 HP) Blade […]
V-0615
Model V-0615 Cutting capacity (H x D) 600 mm x 1500 mm (23.6″ x 59″) nmin. clamp width 500 mm (19.6″) Blade Speed 15-75 m/min (50 to 250 fpm) Motor Blade drive 5.5 kW (7.5 HP) Hydraulic pump 2.2 kW (3 HP) Coolant pump 0.6 kW (3/4 HP) Chip conveyor 0.4 kW (1/2 HP) Blade […]
