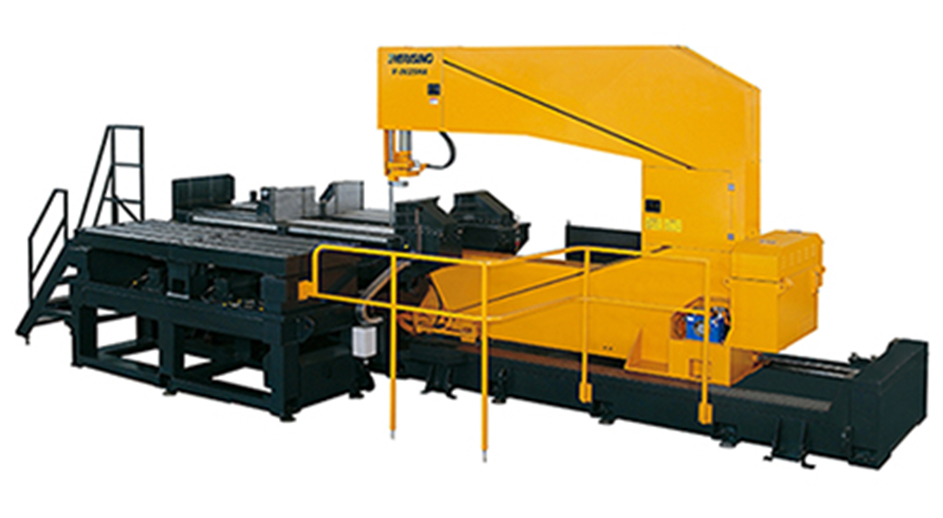

V-0625
Model V-0625 Cutting capacity (H x D) 600 mm x 2500 mm (23.6″ x 98.4″) nmin. clamp width 1500 mm (59″) Blade Speed 15-75 m/min (50 to 250 fpm) Motor Blade drive 5.5 kW (7.5 HP) Hydraulic pump 2.2 kW (3 HP) Coolant pump 0.6 kW (3/4 HP) Chip conveyor 0.4 kW (1/2 HP) Blade […]

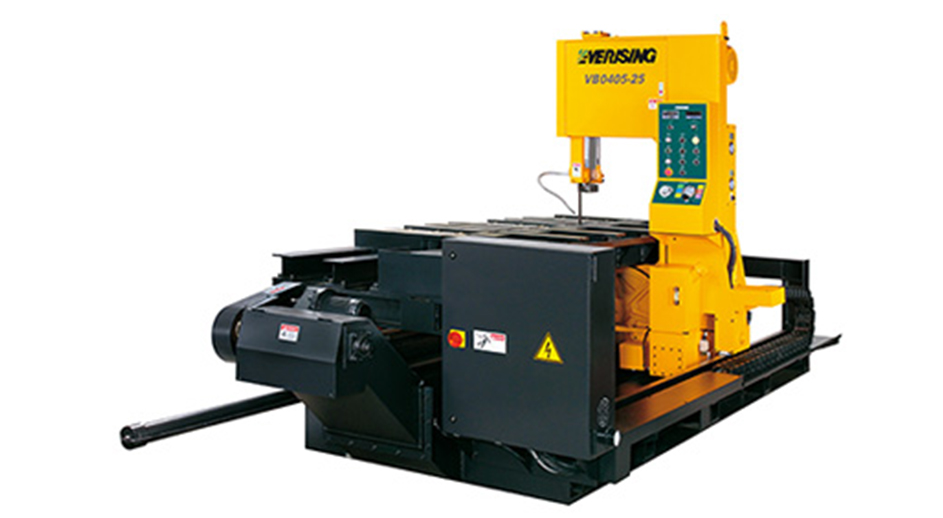

VB0405
Model VB0405 Cutting height 400 mm (15.7″) Cutting depth 500 mm (19.7″) Cutting length 1.5/2.5 M Table support width Outer table 550 mm (21.7″) Inner table 500 mm (19.7″) Blade size 4750 x 41 x 1.3 mm (187″x1.6″x0.05″) Blade speed 20-100 m/min (65 to 330 fpm) Cutting feed Hydraulic Motor Blade drive 5.5 kW (7.5 […]

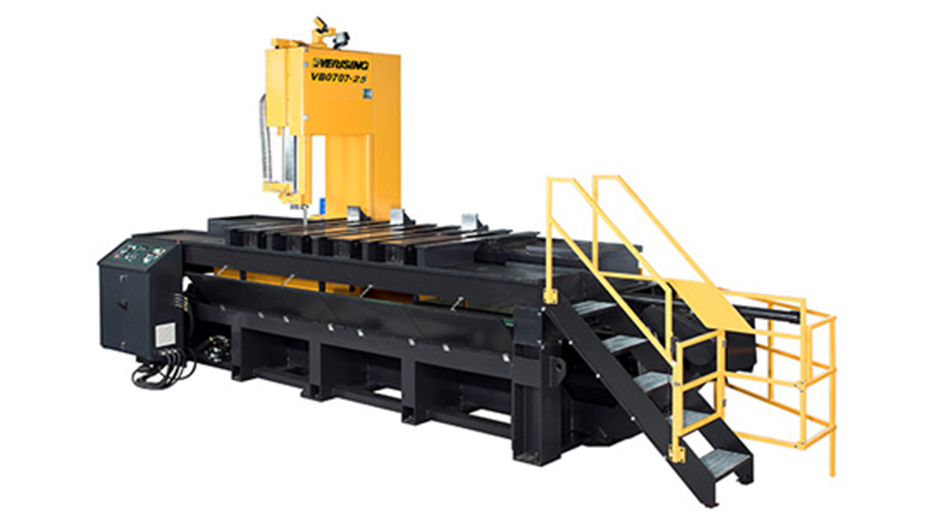

VB0707
Model VB0707 Cutting height 700 mm (27.6″) Cutting depth 700 mm (27.6″) Cutting length 1.5/2.5 M Table support width Outer table 700 mm (27.6″) Inner table 700 mm (27.6″) Blade size 6800 x 54 x 1.6 mm (267.7″ x 2″ x 0.06″) Blade speed 15-75 m/min (50 to 250 fpm) Cutting feed Hydraulic Motor Blade […]

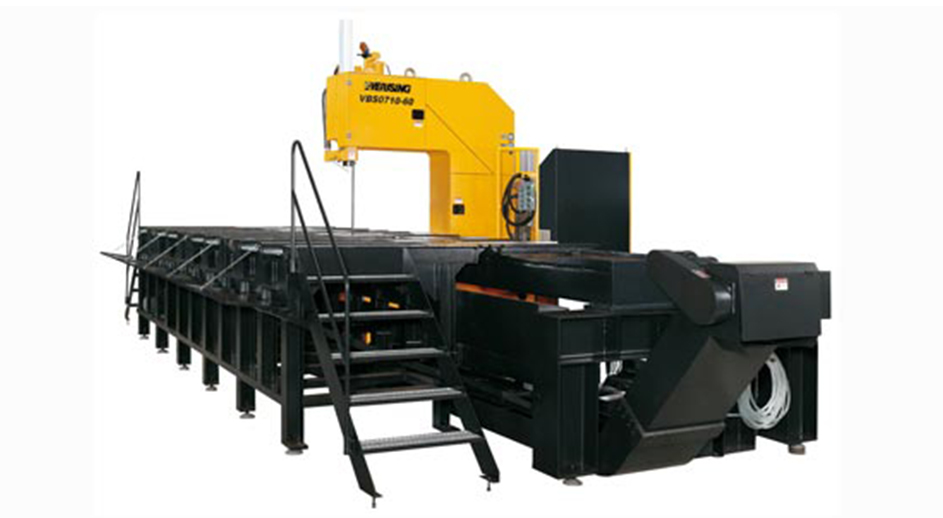

VBS0407
Model VBS0407 Cutting height 400 mm (15.7”) Cutting depth 700 mm (27.6”) Cutting length 3/4.5/6 M Table support width Outer table 1600 mm (63”) Inner table 700 mm (27.6”) Blade size 6200 x 54 x 1.6 mm (244.1” x 2.1” x 0.063”) Blade speed 15-75 m/min (50 to 250 fpm) Cutting feed Servomotor (2-500 mm/min) […]

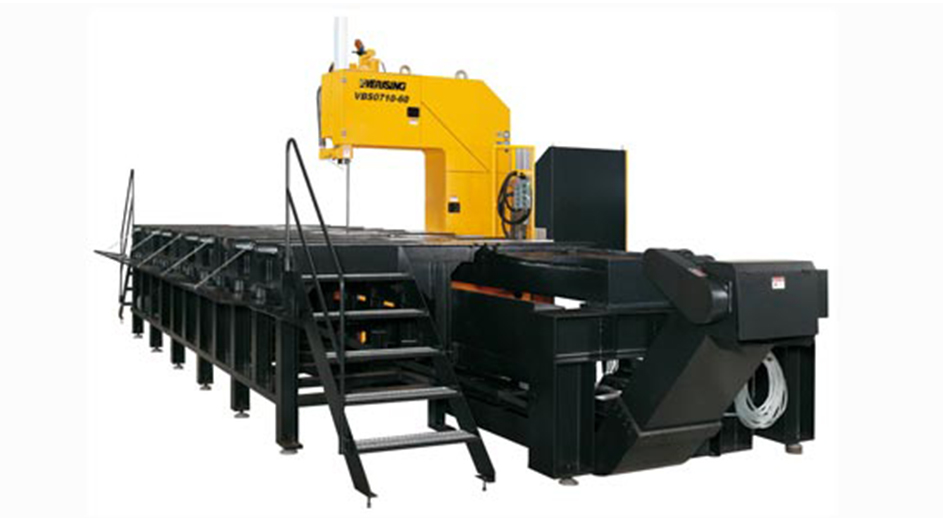

VBS0707
Model VBS0707 Cutting height 700 mm (27.6”) Cutting depth 700 mm (27.6”) Cutting length 3/4.5/6 M Table support width Outer table 1600 mm (63”) Inner table 700 mm (27.6”) Blade size 6800 x 54 x 1.6 mm (267.7” x 2.1” x 0.063”) Blade speed 15-75 m/min (50 to 250 fpm) Cutting feed Servomotor (2-500 mm/min) […]

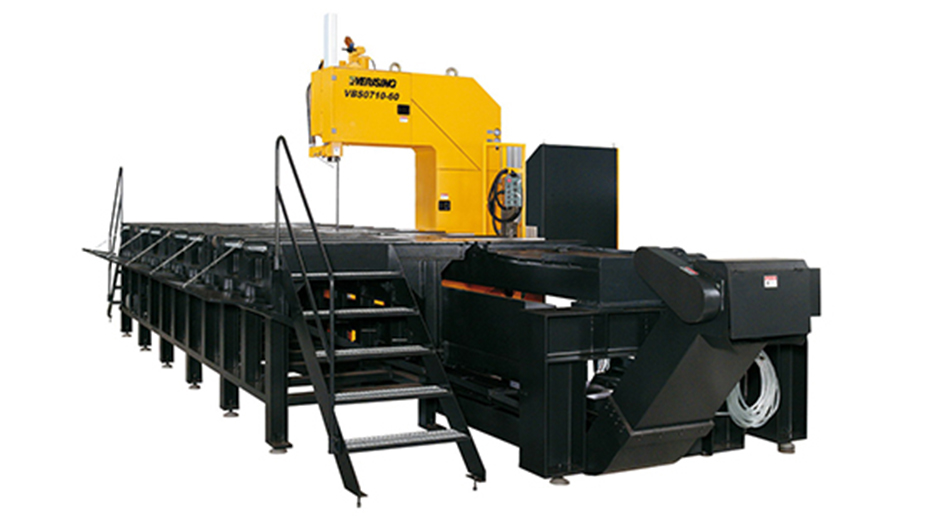

VBS0710
Model VBS0710 Cutting height 700 mm (27.6”) Cutting depth 1000 mm (39.4”) Cutting length 3/4.5/6 M Table support width Outer table 1600 mm (63”) Inner table 1000 mm (39.4”) Blade size 7140 x 54 x 1.6 mm (281.1” x 2.1” x 0.063”) Blade speed 15-75 m/min (50 to 250 fpm) Cutting feed Servomotor (2-500 mm/min) […]

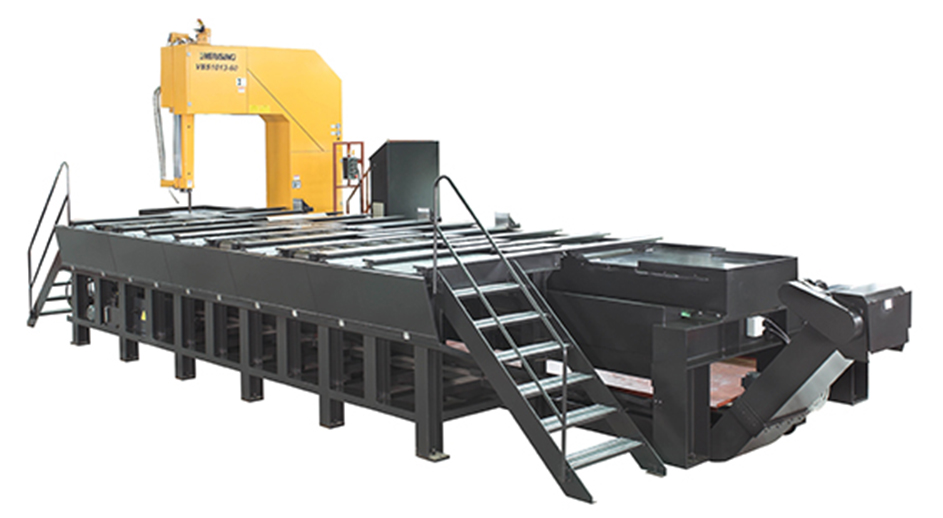

VBS1013
Model VBS1013 Cutting height 1000 mm (39.4”) Cutting depth 1300 mm (51.2”) Cutting length 3/4.5/6 M Table support width Outer table 1600 mm (63”) Inner table 1300 mm (51.2”) Blade size 8800 x 67 x 1.6 mm (346.5” x 2.6” x 0.063”) Blade speed 15-75 m/min (50 to 250 fpm) Cutting feed Servomotor (1-300 mm/min) […]

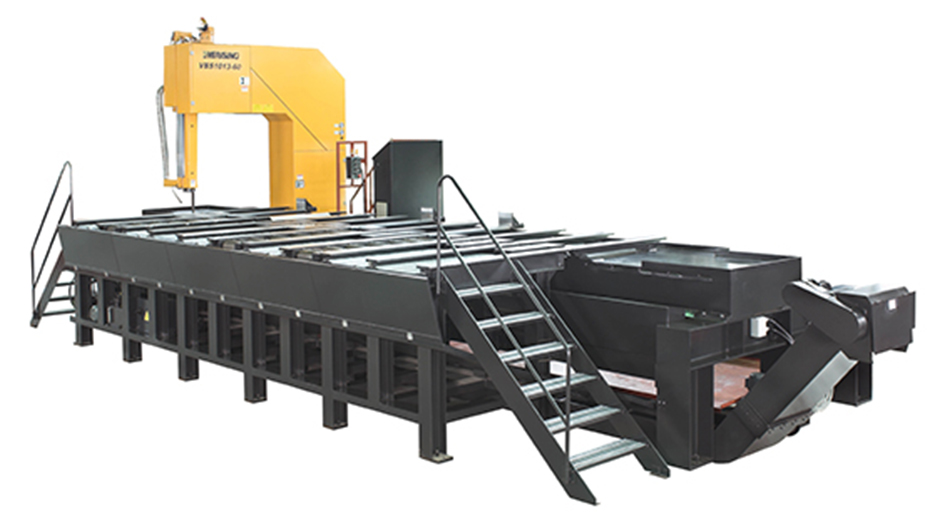

VBS1316
Model VBS1316 Cutting height 1300 mm (51.2”) Cutting depth 1600 mm (63”) Cutting length 3/4.5/6 M Table support width Outer table 2000 mm (78.7”) Inner table 1600 mm (63”) Blade size 10000 x 80 x 1.6 mm (393.7” x 3.1” x 0.063”) Blade speed 15-75 m/min (50 to 250 fpm) Cutting feed Servomotor (1-300 mm/min) […]

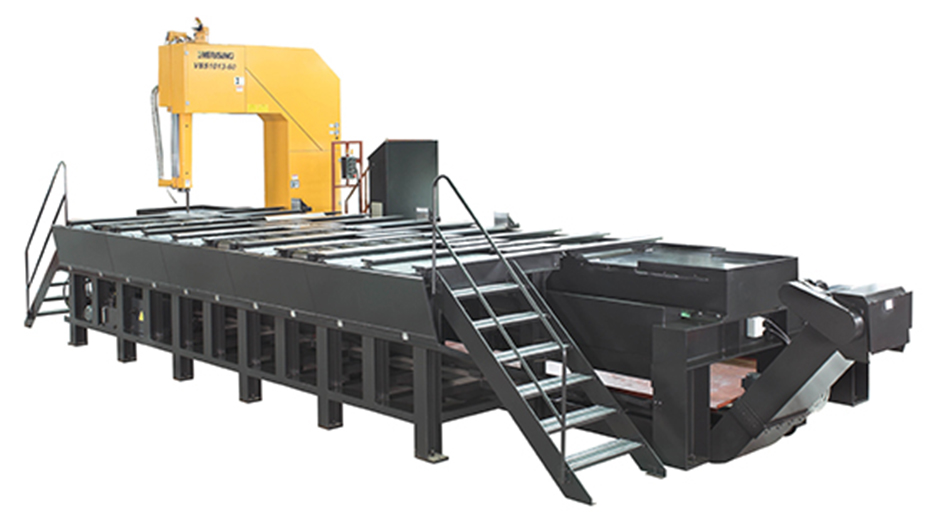

VBS2016
Model VBS2016 Cutting height 2000 mm (78.7”) Cutting depth 1600 mm (63”) Cutting length 3/4.5/6 M Table support width Outer table 2000 mm (78.7”) Inner table 1600 mm (63”) Blade size 12370 x 80 x 1.6 mm (487” x 3.1” x 0.063”) Blade speed 15-75 m/min (50 to 250 fpm) Cutting feed Servomotor (1-300 mm/min) […]

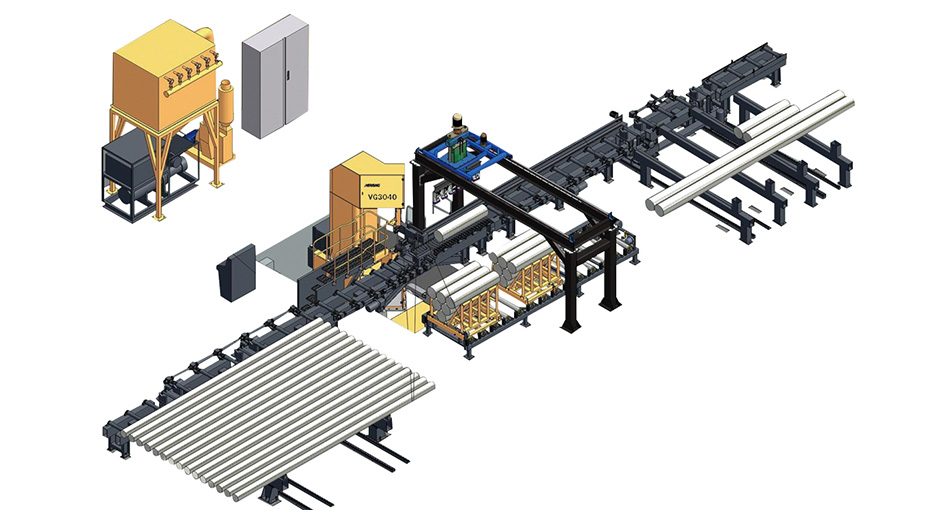

VG3040
Model VG3040 Capacity 300(H) x 400(W) mm Blade size 300(H) x 400(W) mm Blade Motor 37 kW Blade Speed 500 – 3000 m/min Feeding Speed 0 – 3000 mm/min Options Chip Collector, Chip Compactor, Marking Machine, Robot, Weighing Device
