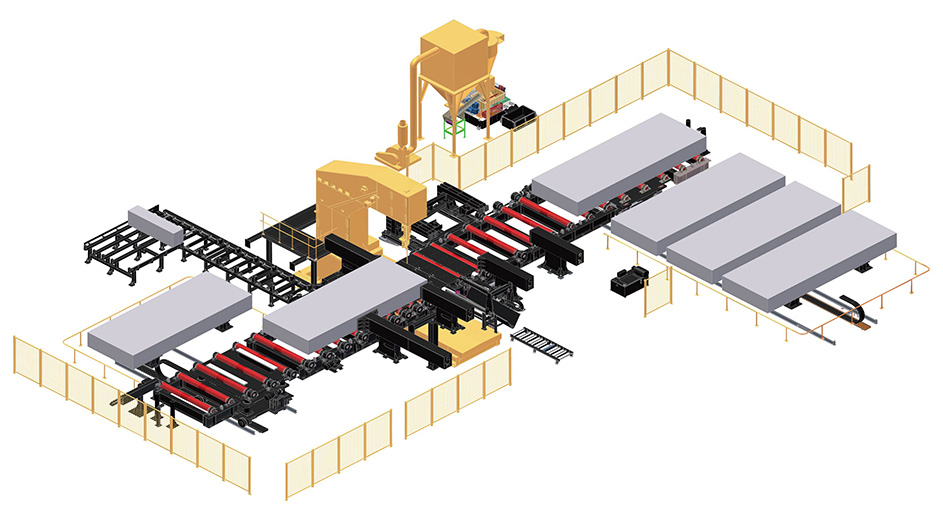

VG70230
Model VG70230 Capacity 700mm 2300(W) x 700(H) mm Blade size 16590 x 41 x 1.3 mm Blade Motor 75 kW Blade Speed 500 – 3000 m/min Feeding Speed 0 – 3000 mm/min Options Chip Collector, Chip Compactor, Marking Machine, Weighing Device
H-3010
Model H-3010 Capacity 1000(H) x 3000(W) x 5000(L) mm Blade size 16940 x 80 x 1.6 mm Blade speed 300 – 1000 m/min Motor Blade 22 kW ( 30 HP) Hydraulic pump 5.5 kW ( 7.5 HP) Feed 2 kW ( 3 HP) Cutting fluid pump 360 W ( 1/2 HP) Table Feed stroke 5900 […]

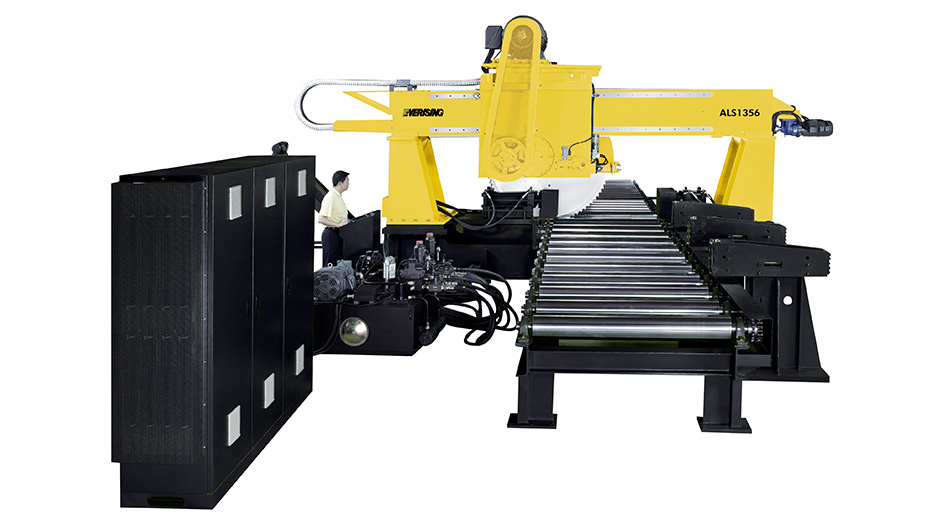

ALS1356
Model ALS1356 CAPACITY 990 – 1310 mm (W) n330 – 560 mm (H) MIN CAPACITY 330 – 560 mm MOTOR BLADE DRIVE MOTOR 200HP x 4P / 100HP x 8P HYDRAULIC PUMP MOTOR 15HP SAW HEAD INFEED 5HP COOLANT 2HP CHIP CONVEYOR 2HP CUT-OFF LENGTH 900 – 4600mm BLADE SIZE Ø 1870 x 15 x […]

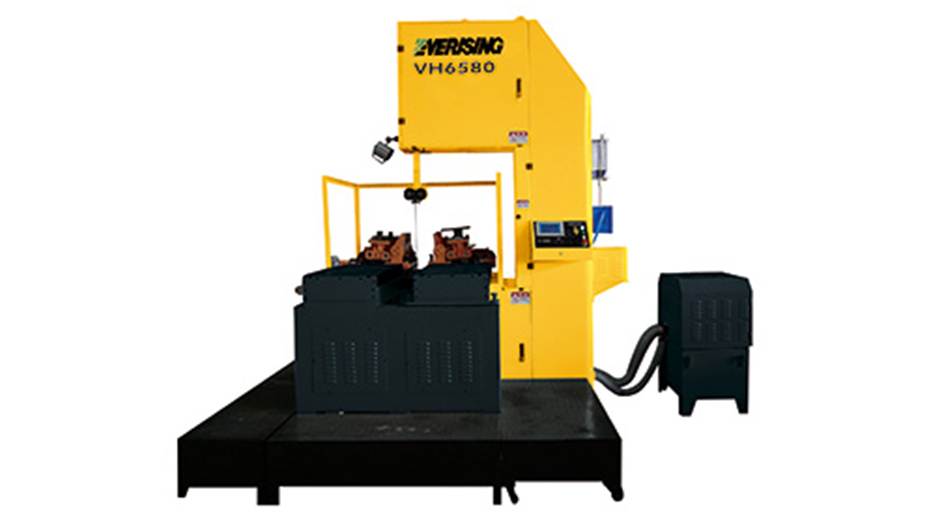

VH6580
Model VH6580 Capacity 650H x 800W mm Blade Size 6660 x 34 x 1.1 mm Motor 15 kW Blade Speed 500 – 2000 m/min Feeding Speed 0 – 2000 mm/min Feeding Stroke 1000 mm Machine Size 2900L x 2600W x 3100H mm Machine Weight 4500 kg

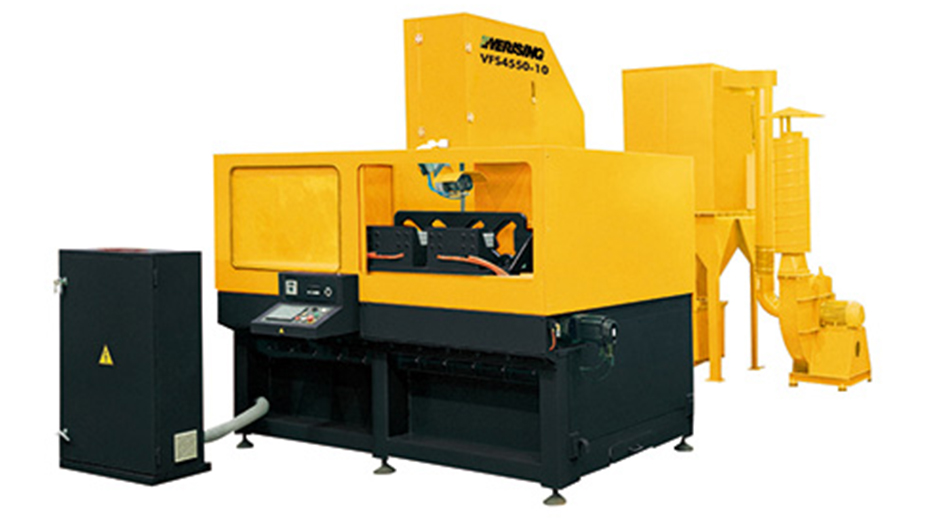

VFS4550-10
Model VFS4550-10 Capacity 450H x 500W mm Blade Size 5260 x 34 x 1.1 mm Motor 8.62 kW Blade Speed 500 – 2000 m/min Feeding Speed 0 – 2000 mm/min Feeding Stroke 1000 mm Machine Size 2500L x 1950W x 2600H mm Machine Weight 4500 kg

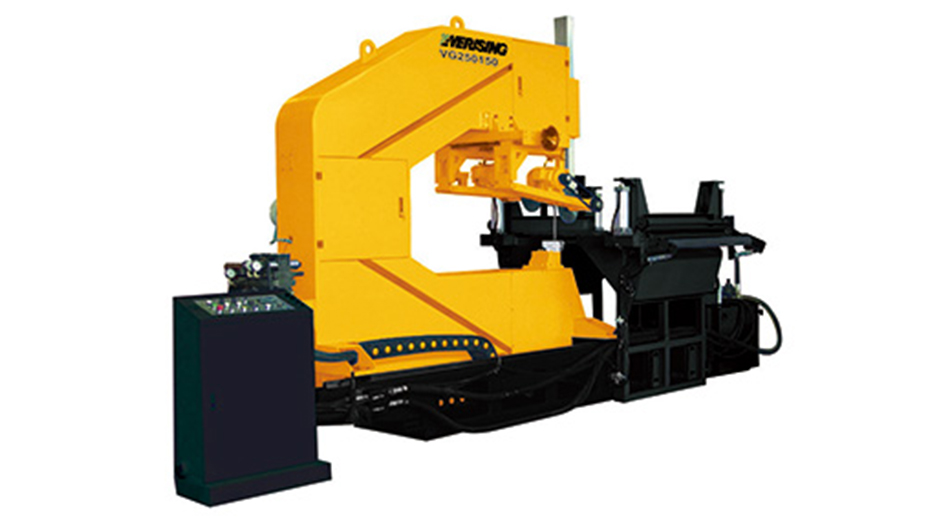

VG250150
Model VG250150 Capacity 250H x 1200W mm Blade Size 8210 x 27 x 0.9 mm Motor 15 kW Blade Speed 500 – 2000 m/min Feeding Speed 0 – 3000 mm/min Feeding Stroke 1500 mm Machine Size 960L x 4700W x 3000H mm Machine Weight 9000 kg

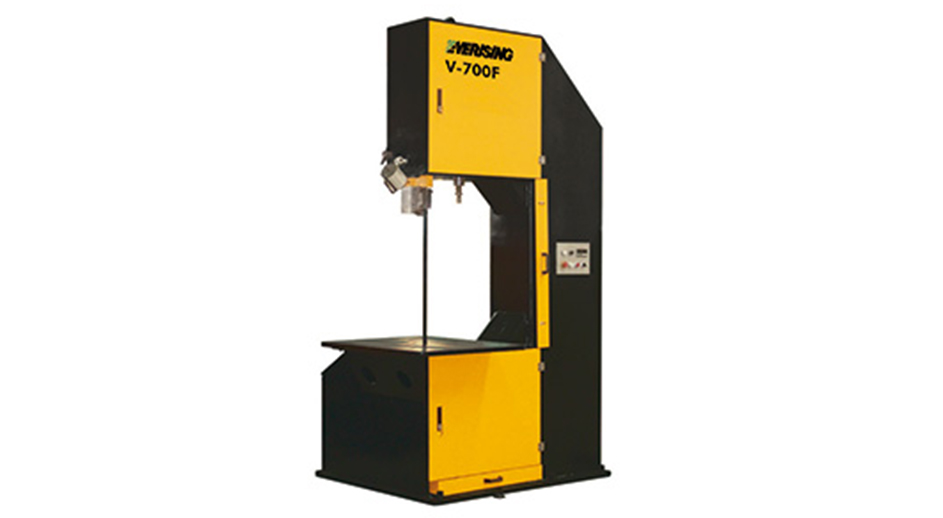

V-700F
Model V-700F Capacity 700H x 700W mm Blade Size 6190 x 41 x 1.3 mm Motor 11 kW Blade Speed 100 – 600 m/min (Synchronously speed adjusting) Feeding Speed Feeding Stroke Machine Size 1790L x 1520W x 2850H mm Machine Weight 2900 kg

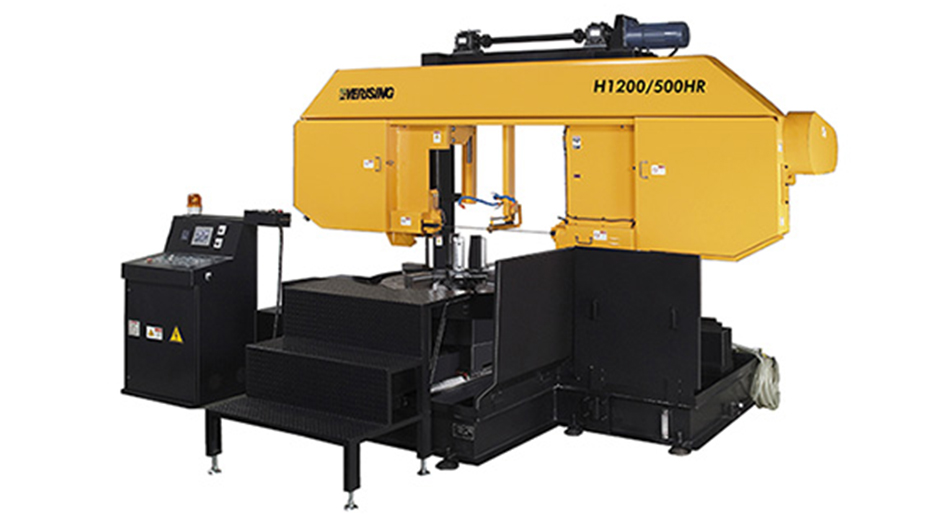

H1200/500R
MODEL H1200/500R CAPACITY OD 1200 mm ID 500 mm HEIGHT 500 mm MAX. WALL THICKNESS 300 mm BLADE SIZE 8300 x 67 x 1.6 mm BLADE SPEED 15 to 75 m/min BLADE TENSION Hydraulic MOTOR BLADE 11 kW (15 HP) HYD. PUMP 2.2 kW (3 HP) COOLANT PUMP 0.4 kW (1/2 HP) SERVO FEED 2 […]

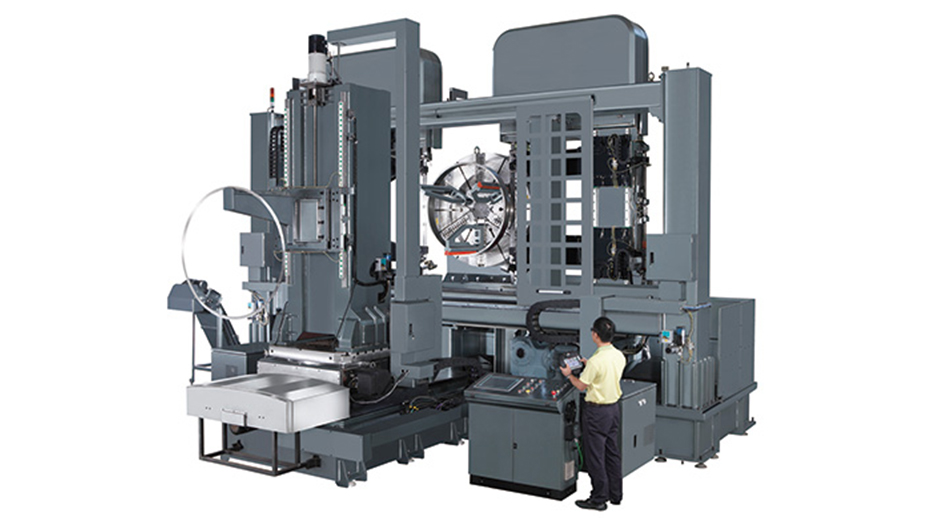

RV2007DH
MODEL RV2007DH CUTTING CAPACITY MAX. OD 1980 mm MIN. OD 510 mm MAX. ID 1970 mm MIN. ID 500 mm MAX. WALL THICK 220 mm MIN. WALL THICK 10 mm BLADE SIZE 10370 x 80 x 1.1 mm BLADE SPEED 15 – 105 m/min BLADE TENSION Hydraulic MACHINE WEIGHT 60000 kg
P-75C
Model P-75C Capacity 10 – 75 mm 10 – 54 mm 10 – 54 mm Blade Motor 7.5 kW Hydraulic Pump Motor 1.5 kW Servo Motor Blade Feed 1.5 kW Bar Feed 1 kW Third Vise (Opt.) 1 kW Blade Speed 50 – 200 rpm Saw Blade Size (T:Kerf t:Thickness) Standard blade Ø 285 x […]
