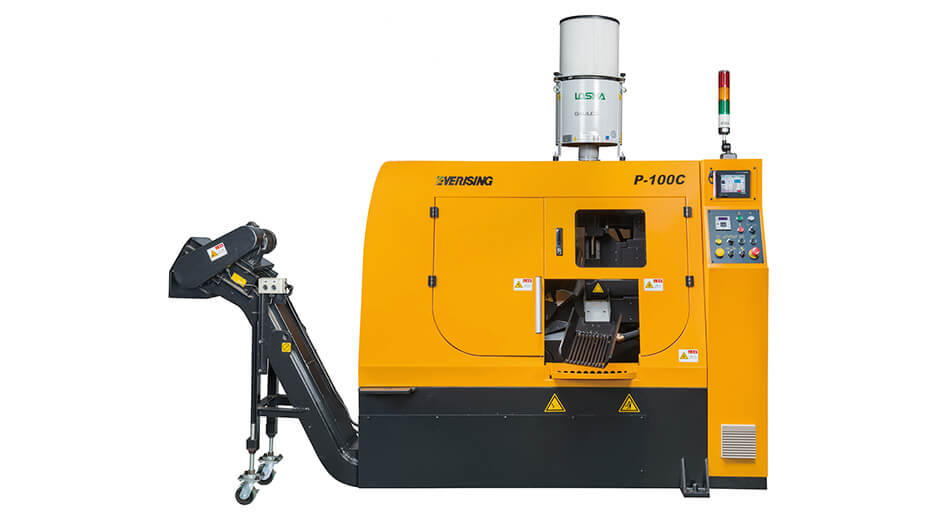

P-100C
Model P-100C Capacity 15 – 100 mm 15 – 80 mm 15 – 80 mm Blade Motor 11 kW Hydraulic Pump Motor 2.2 kW Servo Motor Blade Feed 1.5 kW Bar Feed 1.5 kW Third Vise (Opt.) 1 kW Blade Speed 40 – 160 rpm Saw Blade Size (T:Kerf t:Thickness) Standard blade Ø 360 x […]
P-150C
Model P-150C Capacity 70 – 150 mm 70 – 105 mm 70 – 105 mm Blade Motor 15 kW Hydraulic Pump Motor 3.7 kW Servo Motor Blade Feed 2 kW Bar Feed 2 kW Third Vise (Opt.) 1 kW Blade Speed 30 – 125 rpm Saw Blade Size (T:Kerf t:Thickness) Standard blade Ø 460 x […]
P-50ILA
MODEL P-50ILA Capacity 8 – 50 mm 8 – 40 mm Blade Motor 10 HP Hydraulic Pump Motor 2 HP Blade Speed 55 – 220 rpm Saw Blade Size n(T: kerf t: thickness) Ø 250 x T2.0 x 1.75t mm Bar Feed Servo motor and ball screw Blade Feed Servo motor and ball screw Automatic […]
P-75ILA
Model P-75ILA Capacity Ø10 – 75 mm 10 – 54 mm Blade speed 50-200 RPM Saw Blade size Ø285 x T2.0 x 1.75t mm.. Motors Blade drive 7.5 Kw (10 HP) Hyd. pump 1.5 Kw (2 HP) Servo motor Saw head servo 1.5KW Feeding servo 1.0KW Bar Feed Servo motor and ball screw Automatic Feed […]
P-100ILA
Model P-100ILA Capacity Ø15-100 mm 15-80mm Blade Speed 40 – 160 RPM Saw Blade Size Ø360 x T2.6 x 2.25t mm. Motors Blade Motor 11 Kw (15 HP) Hydraulic Pump Motor 2.2 Kw (3 HP) Servo Motor Blade Feed 1.5KW Bar Feed 1.5KW Blade Feed nBar Feed Servo motor and ball screw Automatic Feed Length […]
P-150ILA
Model P-150ILA Capacity Ø70-150 mm 70-105mm Blade Speed 30 – 125 RPM Saw Blade Size (T : Kerf ) Ø460 x T2.7 x 2.25t mm. Blade Motor nHydraulic Pump Motor 15 Kw (20 HP) n3.7 Kw (5 HP) Servo Motor Blade Feed 2KW Bar Feed 2KW Blade Feed nBar Feed Servo motor and ball screw […]
P230ILA
Model P-230ILA Capacity 70 ~ 230 mm 70 ~ 160 mm Motor Blade Motor 30 kw (40 HP) Hydraulic Pump Motor 3.7 kw (5 HP) Blade Speed 20 ~ 70 rpm Saw Blade Size (T : Kerf ) Dia. 750 x T 3.8 x 3.2t mm Servo Motor Blade Feed 3.5 kW Bar Feed 3.5 […]
