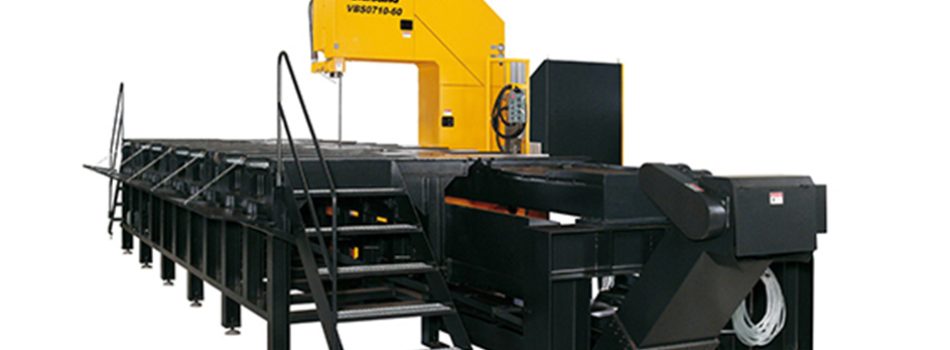

| Model | VBS0710 | |
|---|---|---|
| Cutting height | 700 mm (27.6”) | |
| Cutting depth | 1000 mm (39.4”) | |
| Cutting length | 3/4.5/6 M | |
| Table support width | Outer table | 1600 mm (63”) |
| Inner table | 1000 mm (39.4”) | |
| Blade size | 7140 x 54 x 1.6 mm (281.1” x 2.1” x 0.063”) | |
| Blade speed | 15-75 m/min (50 to 250 fpm) | |
| Cutting feed | Servomotor (2-500 mm/min) | |
| Motor | Blade drive | 5.5 kW (7.5 HP) |
| Hydraulic pump | 1.5 kW (2 HP) x2 | |
| Coolant pump | 0.75 kW (1 HP) | |
| Feed servomotor | 1 kW | |
| Table height | 1400 mm (55.1”) | |
| Floor space | 10300L x 4700W mm (405.5” x 185”) (6M) | |
| Machine height | 3700 mm (147.5”) | |
| Machine weight (approx.) | 19000 kgs (41888 lbs) (6M) | |
